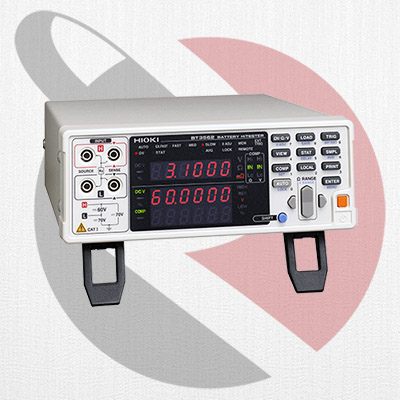

Hioki benchtop Battery Testers mendukung pengukuran kecepatan tinggi secara bersamaan dari resistansi internal dan voltase baterai untuk jalur produksi yang semakin besar dari baterai ion-lithium resistansi rendah, dan paket baterai lainnya untuk aplikasi tegangan tinggi. BT3562 dapat mengukur voltase dan resistansi baterai sampai seukuran koin hingga baterai sel besar bertegangan 60V hampir secara bersamaan karena waktu responsnya yang cepat.
| Max. applied measurement voltage | ± 60 VDC rated input voltage ± 70 VDC Max. rated voltage to earth |
|---|---|
| Resistance measurement ranges | 3 mΩ (Max. display 3.1000 mΩ, resolution 0.1 μΩ) to 3000 Ω (Max. display 3100.0 Ω, resolution 100 mΩ), 7 ranges Accuracy: 30 mΩ to 3000 Ω ranges, ± 0.5% rdg. ± 5 dgt. (Add ± 3 dgt. for EX.FAST, or ± 2 dgt. for FAST and MEDIUM) 3 mΩ range, ± 0.5% rdg. ± 10 dgt. (Add ± 30 dgt. for EX.FAST, or ± 10 dgt. for FAST, or ± 5 dgt. for MEDIUM) Testing source frequency: 1 kHz ± 0.2 Hz, testing current: 100 mA (3 mΩ range) to 10 μA (3000 Ω range) Open-circuit Voltage: 25 V peak (3/30 mΩ ranges), 7 V peak (300 mΩ range), 4 V peak (3 Ω to 3000 Ω ranges) |
| Voltage measurement ranges | 6 VDC (resolution 10 μV) to 60 VDC (resolution 100 μV), 2 ranges |
| Accuracy: ± 0.01% rdg. ± 3 dgt. (Add ± 3 dgt. for EX.FAST, or ± 2 dgt. for FAST and MEDIUM) | |
| Display | 31000 full digits (resistance), 600000 full digits (voltage), LED |
| Sampling rate | Four steps, 4 ms (Extra-FAST), 12 ms (FAST), 35 ms (Medium), 150 ms (Slow) (Typ., sampling time depends on supply frequency settings and function.) |
| Measurement time | Response time + sampling rate, approx. 10 ms for measurements (Response time depends on reference values and the measurement object.) |
| Comparator functions | Judgment result: Hi/IN/Lo (resistance and voltage judged independently) Setting: Upper and lower limit, Deviation (%) from reference value Logical ANDed result: PASS/FAIL, calculates the logical AND of resistance and voltage judgment results. Result display, beeper, or external I/O output, Open-collector (35 V, 50 mA DC max.) |
| Analog output | Measured resistance (displayed value, from 0 to 3.1 V DC, -01 suffix models only) |
| Interfaces | External I/O, RS-232C, Printer (RS-232C), GP-IB (-01 suffix models only) |
| Power supply | 100 to 240 VAC, 50/60 Hz, 30 VA max. |
| Dimensions and mass | 215 mm (8.46 in) W × 80 mm (3.15 in) H × 295 mm (11.61 in) D, 2.4 kg (84.7 oz) |
| Accessories | Instruction manual ×1, Power cord ×1 |
Catatan: Lead tidak include. Beli lead opsional yang sesuai untuk pengaplikasi anda. Konektor Male I / O EXT juga tersedia (sisi sistem). Silakan tanyakan kepada distributor Hioki Anda.
