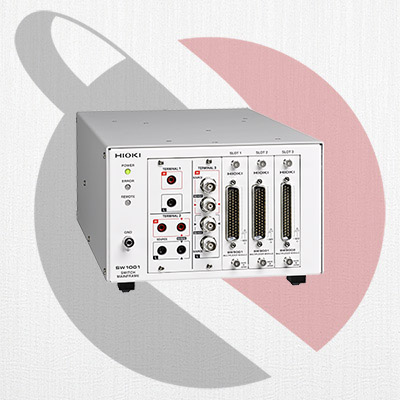

SW1001 adalah mainframe sakelar untuk menampung hingga 12 unit Modul Multiplexer SW9001 atau SW9002 untuk menghasilkan pengujian baterai multi-saluran yang cepat. Hubungkan hingga 2 instrumen pengujian baterai untuk menguji pengukuran OCV, pengukuran resistansi internal, dan pengukuran potensial eksternal sel baterai.
| Slots | 3 slots |
|---|---|
| Supported modules | MULTIPLEXER MODULE SW9001 (2-wire/4-wire) MULTIPLEXER MODULE SW9002 (4-terminal pair) |
| Connectible instruments | Max. 2 units 2-wire × 1 + 4-wire × 1, or 2-wire × 1 + 4-terminal pair × 1 |
| Max. input voltage | 60 V DC (Cannot connect to battery packs in excess of 60 V DC), 30 V AC rms, 42.4 V peak, Maximum rated voltage to ground: 60 V DC |
| Communication I/F | LAN, USB, RS-232C (for host, for measurement instruments) |
| Functions | Channel switching, wiring method, scan function, communication command transmission, channel delay, shield switching |
| Power supply | 100 to 240 V AC / 30 VA (50/60 Hz) |
| Dimensions and mass | 215 mm (8.46 in) W × 132 mm (5.20 in) H × 420 mm (16.54 in) D, 3.7 kg (130.5 oz) |
| Accessories | Power cord ×1, instruction manual ×1, usage precautions ×1, USB driver CD ×1 |
Basic specifications for MULTIPLEXER MODULE
| SW9001 | SW9002 | |
| Wiring method | 2-wire or 4-wire | 4-terminal pair (6-wire) or 2-wire |
| No. of channels | 22 channels (2-wire) / 11 channels (4-wire) | 6 channels (4-terminal pair) / 6 channels (2-wire) |
| Contact method | Armature relays | |
| Channel switching time | 11 ms (excluding measurement time) | |
| Max. allowable voltage | 60 V DC, 30 V AC rms, 42.4 V peak | |
| Max. allowable current | 1 A DC, 1 A AC rms | 1 A DC, 1 A AC rms (Sense), 2 A DC, 2 A AC rms (Source, Return) |
| Max. allowable power | 30 W (resistive load) | |
| Maximum rated voltage to ground | 60 V DC | |
| Dimensions and mass | 25.5 mm (1.00 in) W × 110 mm (4.33 in) H × 257 mm (10.12 in) D, 210 g (7.4 oz) | 25.5 mm (1.00 in) W × 110 mm (4.33 in) H × 257 mm (10.12 in) D, 196 g (6.9 oz) |
| Accessories | Instruction manual ×1 | |
Catatan: Modul Multiplexer tidak termasuk dalam Switch Mainframe SW1001 / SW1002. Modul harus dibeli secara terpisah.
