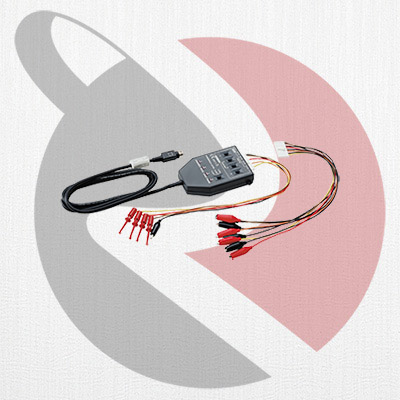

Hioki Logic Probe 9327

• Deteksi tegangan Hi / Lo atau relai sinyal kontak
• 4 saluran dengan kesamaan
• Beralih antara input digital atau kontak
• 3 ambang batas untuk input digital (+ 1.4 / + 2.5 / + 4.0V)
• Mendukung lebar pulsa sesempit 100ns menggunakan respons kecepatan tinggi
• Konektor miniatur

Kategori: Recorder/osiloskop, Hioki (Electrical Measurement), Optional Tag: 4 channels for contact voltage signals, Detect the presence of voltage or relay contact signals with Memory HiCorders at high speeds, High-speed 100ns response

Deskripsi
Ulasan (0)

Function	Detection of voltage signal or relay contact signal for High/Low state recording
Input	4 channels (common ground between unit and channels), digital/contact input, switchable (contact input can detect open-collector signals) Input resistance: 1 MΩ (with digital input, 0 to +5 V) 500 kΩ or more (with digital input, +5 to +50V) Pull-up resistance: 2 kΩ (contact input: internally pulled up to +5 V)
Digital input threshold	1.4V/ 2.5V/ 4.0V
Contact input detection resistance	1.4 V: 1.5 kΩ or higher (open) and 500 Ω or lower (short) 2.5 V: 3.5 kΩ or higher (open) and 1.5 kΩ or lower (short) 4.0 V: 25 kΩ or higher (open) and 8 kΩ or lower (short)
Detectable pulse width	100 ns or longer
Max. allowable input	0 to +50V DC (the maximum voltage that can be applied across input pins without damage)
Dimensions and mass	62 mm (2.44 in)W × 94 mm (3.70 in)H × 20 mm (0.79 in)D, 150 g (5.3 oz), Main unit cable 1.5 m (4.92 ft), input section cable 300 mm (0.98 ft)
Accessories	IC clip leads ×1, Alligator clip leads ×1, Carrying case ×1, Instruction Manual ×1
