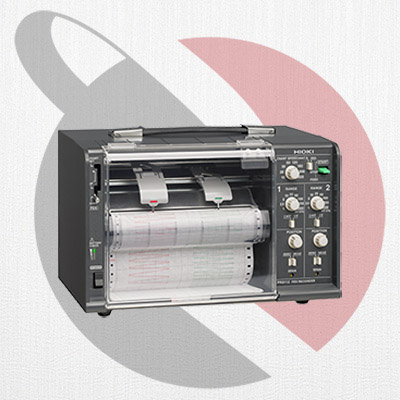

Perekam Pena masih merupakan alat yang sangat diperlukan bagi teknisi lapangan yang membutuhkan laporan tercetak di tempat selama pemeliharaan dan pemecahan masalah pabrik. Perekam Pena Hioki PR8111 dan PR8112 cocok untuk aplikasi di mana menyimpan catatan analog data pengukuran masih diperlukan untuk mematuhi standar perusahaan.
| PR8111 | PR8112 | |
| No. of pens | 1 pen | 2 pens |
| Operating method | Self-balancing, Disposable felt pen recording | |
| Input | DC voltage (Isolated input channels, isolated input and frame) | |
| Measurement ranges | ±1 mV to 500 mV (9 ranges), ±1 V to 250 V (8 ranges) | |
| Max. allowable input | 250 V DC (at V range), 30 V DC (at mV range), Max. rated voltage to earth: 300 V DC, AC, CAT II | |
| Recording accuracy | ±0.5 % of effective recording width (excluding contraction and expansion of recording paper) | |
| Recording width | 150 mm (5.91 in) | |
| Pen interval | 5 mm (0.20 in) | |
| Pen speed | 500 mm/s or greater (using AC adapter) | |
| Chart speed | 10 mm/min to 600 mm/min (8 ranges), 10 mm/hr to 600 mm/hr (8 ranges) Accuracy: ±0.25 % (at 500 mm or higher continuous recording) |
|
| Recording paper | Fanfold plain paper: SE-10Z-2, length: 15 m (49.22 ft) Roll plain paper: SE-10, length: 20 m (65.62 ft) |
|
| Power supply | (1) AC adapter 9418-15 (100 to 240 V, 50/60 Hz) (2) D size alkaline battery (LR20) × 6 (When used with the AC adapter, the adapter takes precedence) (3) DC power supply: 10 to 27 V DC (cable available by special order) |
|
| Continuous use time | 50 hr (based on in-house testing conditions, use LR20 batteries) | 25 hr (based on in-house testing conditions, use LR20 batteries) |
| Max. rated power | 4 VA (AC adapter, DC power) or 3 VA (dry-cell batteries) | |
| Dimensions and mass | 292 mm (11.50 in) W × 177 mm (6.97 in) H × 182 mm (7.17 in) D, 3.9 kg (137.6 oz) (main unit only), 4.8 kg (169.3 oz) (with dry-cell batteries) | 292 mm (11.50 in) W × 177 mm (6.97 in) H × 182 mm (7.17 in) D, 4.4 kg (155.2 oz) (main unit only), 5.3 kg (186.9 oz) (with dry-cell batteries) |
| Accessories | Felt pen P-1201A (Red) ×1, Recording paper SE-10Z-2 (fanfold) ×1, AC Adapter 9418-15 ×1, Front cover ×1, Drip-proof cover ×1, Instruction manual ×1 | Felt pen P-1201A (Red) ×1, Felt pen P-1202A (Green) ×1, Recording paper SE-10Z-2 (fanfold) ×1, AC adapter 9418-15 ×1, Front cover ×1, Drip-proof cover ×1, Instruction manual ×1 |
