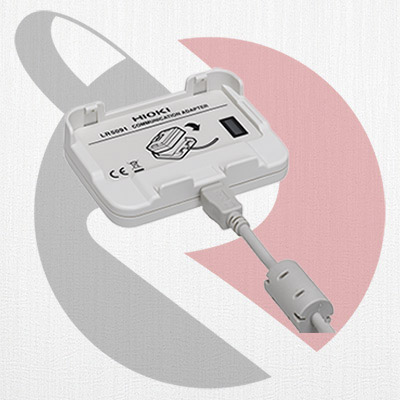

Hioki LR5091 adalah adaptor komunikasi untuk mentransfer data dari LR5000 Series Data Loggers. Cukup letakkan data logger ke Adapater Komunikasi untuk mentransfer data menggunakan inframerah, kemudian unggah data ke PC melalui USB menggunakan aplikasi PC yang dibundel.
| Function | Transfer data from a data logger to a PC Send settings and the time from a PC to a data logger. |
|---|---|
| Communication method | Between data loggers: Infrared communication With PC: USB 2.0 |
| Display | N/A |
| Internal memory (capacity of data) | N/A |
| Removable storage media | N/A |
| Power supply | USB bus power |
| Dimensions and mass | 83 mm (3.27 in) W × 61 mm (2.40 in) H × 19 mm (0.75 in) D, 43 g (1.5 oz) |
| Accessories | USB cable (1 m) ×1, CD (Application software “LR5000 Utility”) ×1 |
■ LR5000 utility specifications
| Operating environment | OS: Windows 7 (32/64bit, .NET Framework 2.0 or more), Vista (32bit, SP1 or more), XP (SP2 or more) *USB interface (when using the Communication Base 3910/3911, a COM port is required) |
|---|---|
| Function | • Settings: Communicates via infrared light with LR5000 series loggers to send and receive settings. • Graph function: Displays graphs of up to 16 channels, displays statistical data, etc. • Print function: Print graphs, Print statistical data. • Export function (data CSV output, paste into Excel) • Import function (loads text files from the Clamp On Power HiTester 3169-20/-21 [only demand parameter with a recording interval of at least 1 sec.]) • Processing of data: Scaling, Power calculation, Energy cost calculation, Operating ratio calculation, Integration, Dew point temperature, Calculate between channels |
