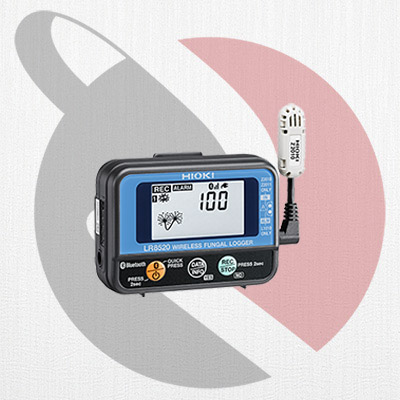

Memori Hioki HiLoggers adalah pencatat data berkecepatan tinggi untuk merekam beberapa saluran sinyal tegangan, suhu, ketahanan atau kelembaban, beberapa model menyediakan isolasi lengkap antara saluran dan ketahanan kebisingan yang kuat. Hioki LR8520 adalah pencatat log nirkabel dan kompak 1ch yang mencatat indeks jamur dan prediksi pertumbuhan untuk mencegah pertumbuhan jamur dengan mudah. Logger menggunakan teknologi Bluetooth® untuk mengirim data pengukuran ke Hioki LR8410 Wireless Logging Station atau ke tablet Android (TM).
Data dapat diunduh menggunakan tablet Hioki dan aplikasi ponsel cerdas (untuk perangkat Android).
Cari “HIOKI” dan unduh Wireless Logger Collector!
| Functionality | [Used as standalone product (Data collected manually) ]
Windows PC or Windows tablet (CD-R with software included) Android smartphone or Android tablet terminal (Download app from Google Play) *Communication range varies with the performance of the computer or tablet (up to a line-of-sight distance of roughly 30 m) [Used as an input module (Real-time measurement) ] Device can be used as an LR8410 logging module to record and display data in real time and to control up to 7 units, Communication distance: 30 m |
|---|---|
| Number of channels | 1 temperature channel + 1 humidity channel (Humidity sensor Z2010 or Z2011 is required (sold separately)) |
| Display items | Temperature, humidity, fungal index (0 to 200), growth prediction (5 levels) |
| Measurable range | [Temperature] -40˚C to 80˚C, Range 100˚C f.s., Max. resolution 0.1˚C [Humidity] 0% to 100% RH, Range 100% RH f.s., Max. resolution 0.1% RH |
| Measurement accuracy (using Z2010/Z2011) | [Temperature] ±0.5 ˚C (10˚C to 60˚C), If outside above temperature range: Add 0.015 ˚C/ ˚C (-40 ˚C to 10 ˚C) or 0.02˚ C/ ˚C (60 ˚C to 80 ˚C) [Humidity] ±3% RH (20˚C to 30 ˚C, 20% to 90% RH), Hysteresis: ±1% RH (Added to the humidity measurement accuracy) |
| Other functions | Measurement value, Date, Time, Number of recorded data, Maximum value, Minimum value, Average value, Alarm, Scaling, Recording operation hold function, Erroneous operation prevention, Comment recording function, Power saving function, Authentication function, Free run |
| Recording | [Capacity] 500,000 data items for each channel [Mode] Instantaneous value [Interval] 0.5 sec to 30 sec, 1 min to 60 min, 14 selections |
| Power supply | ACAdapter Z2003 (100 to 240 V AC, 50 /60 Hz), AA alkaline batteries (LR6) × 2, External power 5 to 13.5 V DC (can also be supplied from USB bus power via a conversion cable) |
| Continuous operating time ([Capacity] 500,000 data items for each channel) (23˚C) | 3.5 months (Recording interval of 1 min, Bluetooth® OFF), 20 days (Recording interval of 1 sec, Bluetooth® ON), 5 days (Recording interval of 0.5 sec, during real-time measurement with the LR8410) |
| Dimensions and mass | 85 mm (3.35 in) W × 61 mm (2.40 in) H × 31 mm (1.22 in) D (Excluding protrusions), 95 g (3.3 oz) (Not including the battery) |
| Accessories | CD-R (Instruction Manual, Logger Utility, Wireless Logger Collector) ×1, Measurement Guide ×1, Caution for Using Radio Waves ×1, AA alkaline batteries (LR6) ×2 , Connection cable L1010 ×1 |
