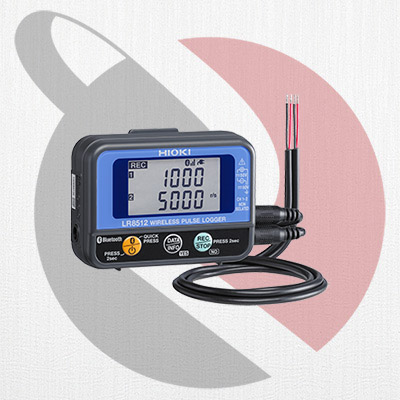

Memori Hioki HiLoggers adalah pencatat data berkecepatan tinggi untuk merekam beberapa saluran sinyal tegangan, suhu, ketahanan atau kelembaban, beberapa model menyediakan isolasi lengkap antara saluran dan ketahanan noise yang kuat. Hioki LR8512 adalah modul input pulsa 2-nirkabel yang memanfaatkan teknologi Bluetooth® untuk mengirim data terukur ke Hioki LR8410 Wireless Logging Station atau ke tablet Android (TM).
Data dapat diunduh menggunakan tablet dan aplikasi smartphone Hioki (untuk perangkat Android).
Cari “HIOKI” dan unduh Wireless Logger Collector!
Functionality | [Used as standalone product (Data collected manually) ]
Windows PC or Windows tablet (CD-R with software included) Android smartphone or Android tablet terminal (Software can be downloaded free of charge from Google Play.) *Communication range varies with the performance of the computer or tablet (up to a line-of-sight distance of roughly 30 m) [Used as logging module (Real-time measurement) ] Device can be used as an LR8410 logging module to record and display data in real time and to control up to 7 units, Communication distance: 30 m |
---|---|
Number of channels | 2ch (common GND) |
Measurement items | Integrating (cumulative/ Instant), Revolution, Logic (Records a 1/0 for each recording interval) |
Supported input format | Non-voltage “a” contact (always-open contact point), open collector, or voltage input (DC 0 to 50 V) |
Measurement range | [Totalization] 0 to 1000 M pulse, Max. resolution 1 pulse, [No. of revolutions] 0 to 5000/n [r/s], Max. resolution 1/n [r/s] |
Display items | Measurement value, date, time, number of recorded data, maximum value, minimum value, and average value |
Functions | Alarm, Scaling, Recording operation hold function, Erroneous operation prevention, Comment recording function, Power saving function, Authentication function |
Recording | [Capacity] 500,000 data items for each channel [Mode] Instantaneous value [Interval] 0.1 to 30 sec, 1 to 60 min, 16 selections |
Power source | AC Adapter Z2003 (100 to 240 V AC, 50/60 Hz), AA alkaline batteries (LR6) ×2, External power 5 to 13.5 V DC (can also be supplied from USB bus power, with a conversion cable) |
Continuous operating time ([Capacity] 500,000 data items for each channel) (23˚C) | 2 months (Recording interval of 1 min, Bluetooth® OFF), 14 days (Recording interval of 1 sec, Bluetooth® ON), 5 days (Recording interval of 0.1 sec, during real-time measurement with the LR8410) |
Dimensions and mass | 85 mm (3.35 in) W × 61 mm (2.40 in) H × 31 mm (1.22 in) D, 95 g (3.4 oz) (excluding the battery) |
Accessories | CD-R ×1 (Instruction Manual, Logger Utility, Wireless Logger Collector), Measurement Guide ×1, Caution for Using Radio Waves ×1, AA alkaline batteries (LR6) ×2, Connection cable L1010 ×2 |
