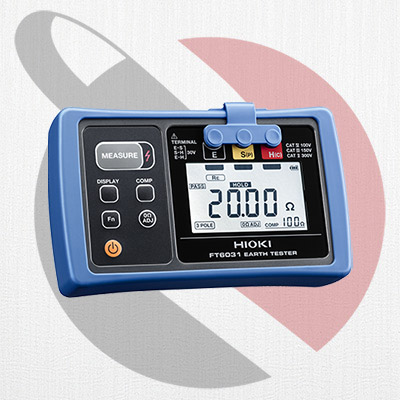

Grounding atau pembumian peralatan listrik sangat penting untuk menjaga keselamatan, melindungi nyawa, serta mencegah kerusakan peralatan. The FT6031-03 adalah IP67 tahan debu dan tahan air dua atau tiga-kutub resistensi tanah dengan tampilan besar, mudah dibaca, batang pembumian sangat sensitif, dan penggulung kabel inovatif yang secara signifikan mengurangi jumlah waktu yang dibutuhkan untuk menyelesaikan resistansi terhadap bumi tes.
Measurement system | Switchable between two- and three- electrode methods | ||
---|---|---|---|
Measurement range | 20 Ω (0 to 20.00 Ω) | 200 Ω (0 to 200.0 Ω) | 2000 Ω (0 to 2000 Ω) |
Accuracy | ±1.5 %rdg. ±8 dgt. | ±1.5 %rdg. ±4 dgt. | ±1.5 %rdg. ±4 dgt. |
Earth voltage | 0 to 30.0 Vrms, Accuracy: ±2.3 %rdg. ±8 dgt. (50/60 Hz), ±1.3 %rdg. ±4 dgt. (DC) | ||
Dustproof and waterproof | IP65/IP67 (EN60529) | ||
Power supply | LR6 Alkaline battery ×4, Possible number of measurements: 400 times (measurement conditions: three-electrode method, measuring 10 Ω) |
||
Dimensions and mass | 185 mm (7.28 in)W × 111 mm (4.37 in)H × 44 mm (1.73 in)D, 570 g (20.1 oz) (including protector and batteries) |
||
Accessories | Auxiliary earthing rod L9840 (2 piece set) ×1, Measurement cable (black 4 m) L9841 ×1, Measurement cable (yellow 10 m, equipped with winder) L9842-11 ×1, Measurement cable (red 20 m, equipped with winder) L9842-22 ×1, Carrying case C0106 ×1, Protector ×1, LR6 Alkaline battery ×4, Instruction manual ×1 |
