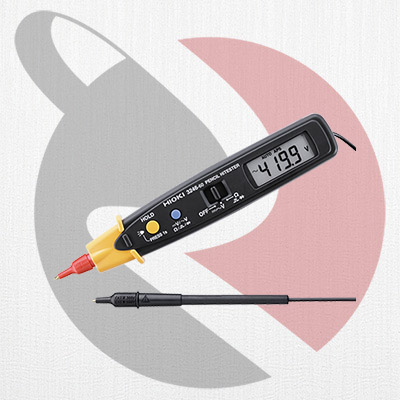

Hioki 3246-60 adalah multimeter digital berbentuk pensil untuk pemeliharaan dan pengujian listrik umum, dan menyertakan LED yang cemerlang di ujung pena untuk pandangan yang jelas dari target pengukuran.
| DC Voltage range | 419.9 mV to 600 V, 5 ranges, Basic accuracy: ±1.3 % rdg. ±4 dgt. |
|---|---|
| AC Voltage range | 4.199 V to 600 V, 4 ranges, Basic accuracy 50 – 500 Hz : ±2.3 % rdg. ±8 dgt. (Average rectified) |
| Resistance range | 419.9 Ω to 41.99 MΩ, 6 ranges, Basic accuracy: ±2.0 % rdg. ±4 dgt. |
| Continuity buzzer | Detection level 50 Ω ±40 Ω |
| Diode check | Judges the right direction only, Open terminal voltage: 3.4 V or less, Testing current: 800 µA or less |
| Auto power save | Available (cancel selectable) |
| Display | Digital LCD, max. 4199 digits |
| Sampling rate | 2.5 times/sec |
| Power supply | Coin type lithium battery (CR2032) ×1, Continuous use: 150 hours (at DC V function), 30 hours (with light turned on for 10 seconds and off for 20 seconds per cycle and in DC V function) |
| Dimensions and mass | 30 mm (1.18 in)W × 182 mm (7.17 in)H × 26.5 mm (1.04 in)D, 80 g (2.8 oz) |
| Accessories | Instruction manual ×1, Coin type lithium battery (CR2032) ×1 (for trial purposes only), Sleeves (Red/ Black eac |
