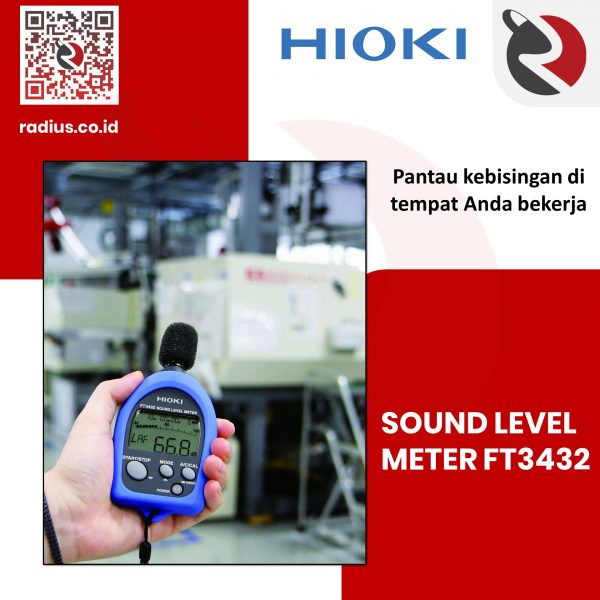

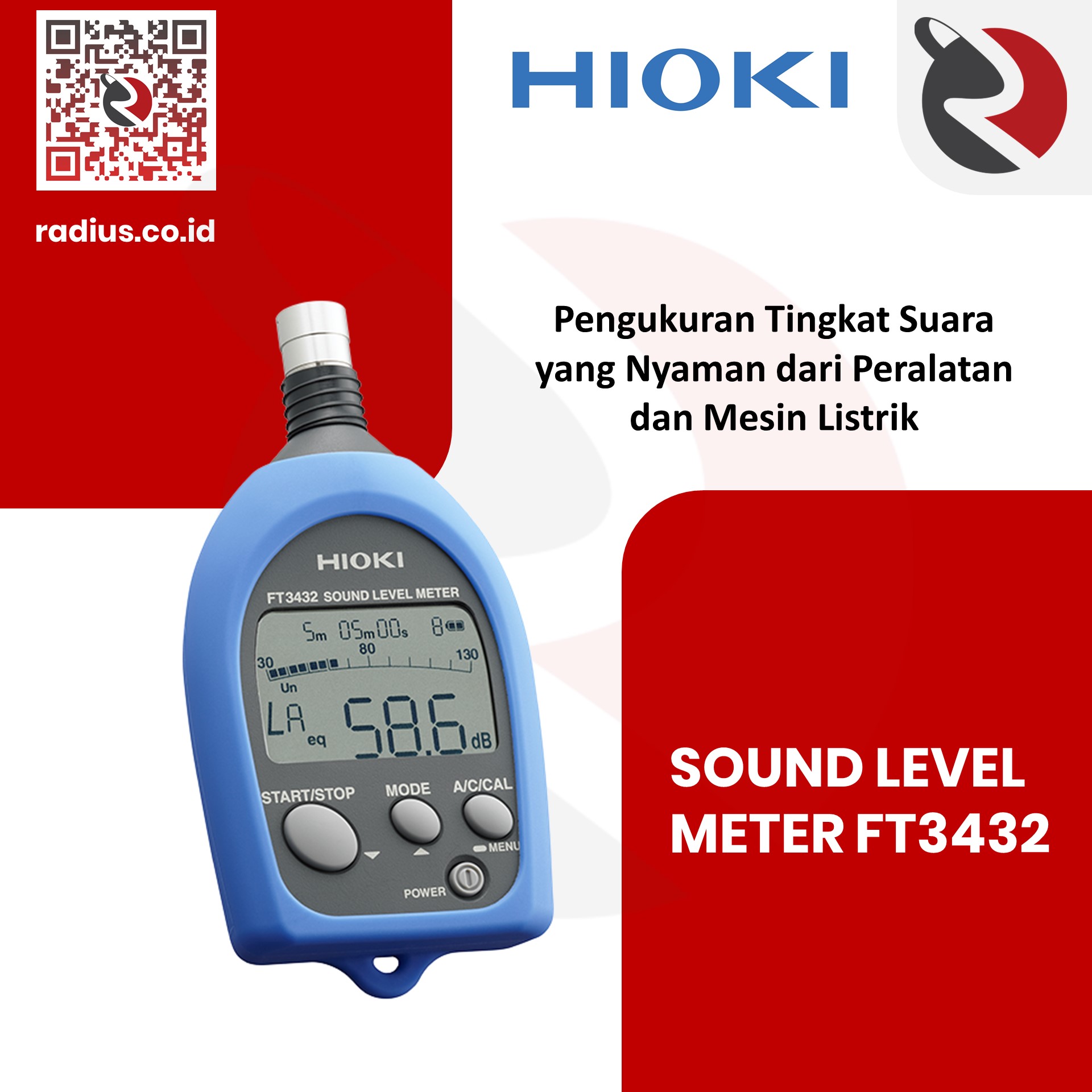

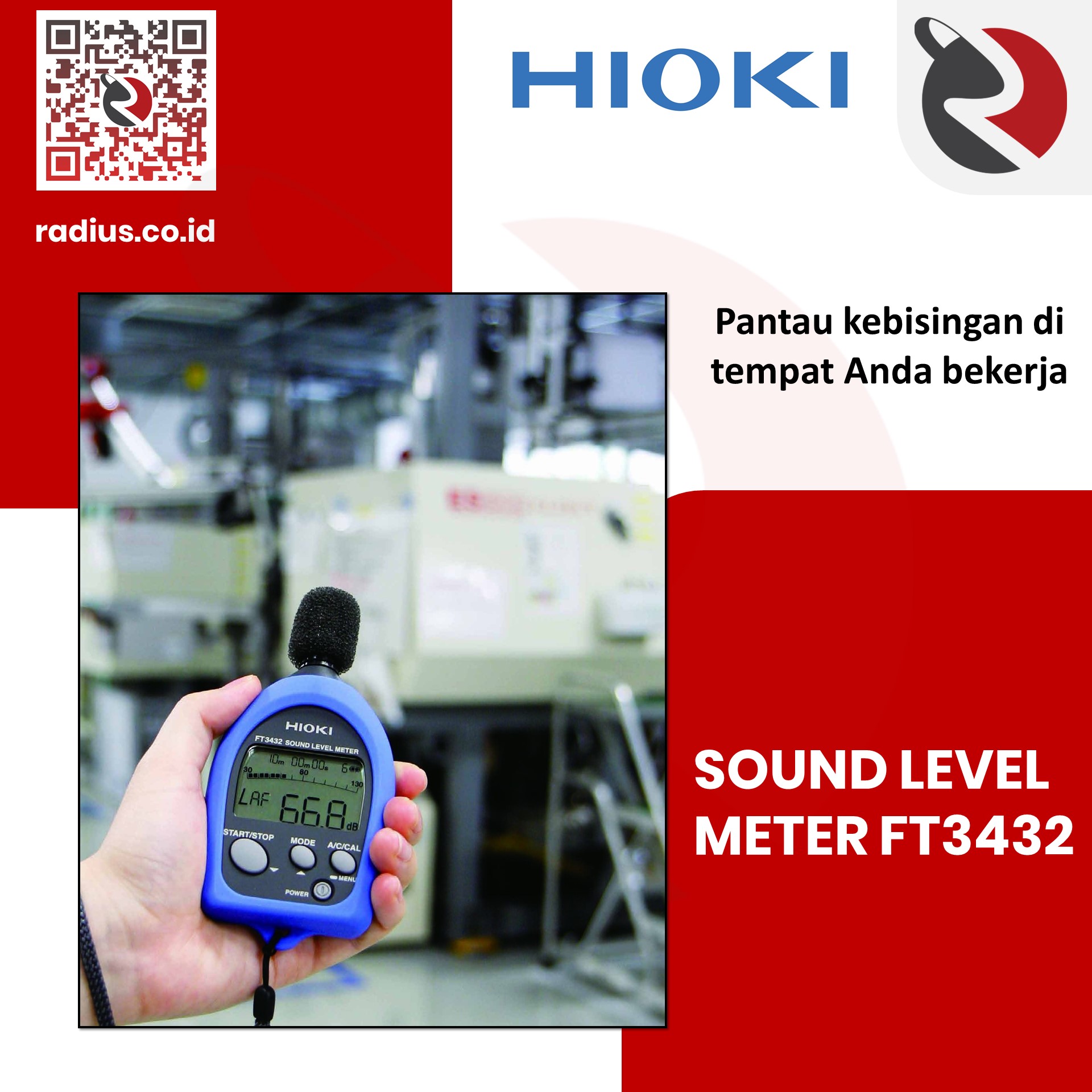

Sound Level Meter Hioki FT3432 digunakan dalam mengukur kebisingan dengan memfasilitasi pengukuran kebisingan di pabrik dan sekolah, di dekat mesin, dan tempat-tempat lainya, untuk memastikan lingkungan yang lebih nyaman. Cukup kecil untuk dimasukkan ke dalam saku dan beratnya hanya 105 g, instrumen ini mengukur tingkat suara, equivalent continuous sound level, sound exposure level, maximum sound level, dan C-weighted peak sound level.
Spesifikasi Hioki FT3432 Sound Level Meter
| Applicable standards | IEC 61672-1: 2013 Class 2, JIS C 1509-1:2017 Class2, JIS C 1516:2014 Class2 | |||||
|---|---|---|---|---|---|---|
| Measurement functions | Sound level, Equivalent continuous sound level, Sound exposure level, Maximum Sound level, C weighting peak sound level (measurement possible only when peak range is selected) | |||||
| Measurement times | 1/5/10 minutes, or 1 hour | |||||
| Frequency weighting characteristics | A weighting, or C weighting | |||||
| Measurement level range | [Wide range] A weighting: 30 dB to 137 dB, C weighting: 36 dB to 137 dB [Peak range] A weighting: 65 dB to 137 dB, C weighting: 65 dB to 137 dB |
|||||
| Frequency range | 20 Hz to 8000 Hz | |||||
| Microphone | 1/2-inch electret condenser microphone | |||||
| Time weighting characteristics | Fast or Slow | |||||
| Other functions | Storing processing results (Storing capacity : 199 pieces of data), Warning indications, Bar graph | |||||
| Output | DC output connector: DC output: 3 V (full scale), 25 mV/dB, Output impedance: 50 Ω AC monitor output connector: AC output: 1 Vrms +600 mVrms, -400 mVrms (at 110 dB) (Upper limit: 1.8 Vrms), Output impedance: 600 Ω, Frequency weighting characteristics: Z weighting |
|||||
| Power supply | LR03 (AAA) alkaline battery ×2, Continuous use 9 hr at wide range, R03 (AAA) manganese battery ×2, Continuous use 3 hr at wide range, Consumption: 80 mA | |||||
| Dimensions and mass | 63 mm (2.48 in) W × 120 mm (4.72 in) H × 23.5 mm (0.93 in) D, 105 g (3.7 oz), (including batteries) | |||||
| Accessories | Wind screen WS-14 ×1, Hand strap VM-63-017 ×1, Windscreen fall out prevention rubber NL-27-014 ×1, Silicon cover NL-27-089 ×1, Carrying Case 9757 ×1, LR03 (AAA) alkaline batteries ×2, Instruction manual ×1 | |||||
Download Brosurnya Disini
