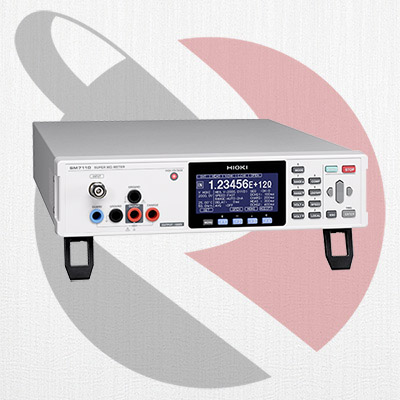

Hioki SM Series Super Megohm Meter adalah perangkat dengan resistansi tinggi dan arus ultra rendah dengan resolusi 0,1 fA untuk menawarkan pengujian yang tepat pada lini produksi. The SM7110 dirancang untuk digunakan dalam mengevaluasi dan menguji kinerja komponen elektronik yang digunakan dalam produk-produk seperti smartphone dan kendaraan hibrida, dan mendukung pengukuran tegangan keluaran hingga 1000 V.
| Number of channels | 1 ch |
|---|---|
| DC current measurement | 20 pA range (0.1 fA resolution), Accuracy: ±(2.0 % of rdg. +30 dgt.) 200 pA range (1.0 fA resolution), Accuracy: ±(1.0 % of rdg. +30 dgt.) 2 nA range (10 fA resolution), Accuracy: ±(0.5 % of rdg. +20 dgt.) 20 nA range (100 fA resolution), Accuracy: ±(0.5 % of rdg. +10 dgt.) 200 nA range (1 pA resolution), Accuracy: ±(0.5 % of rdg. +10 dgt.) 2 μA range (10 pA resolution), Accuracy: ±(0.5 % of rdg. +10 dgt.) 20 μA range (100 pA resolution), Accuracy: ±(0.5 % of rdg. +10 dgt.) 200 μA range (1 nA resolution), Accuracy: ±(0.5 % of rdg. +10 dgt.) *2 mA range (1 nA resolution), Accuracy: ±(0.5 % of rdg. +30 dgt.) (1) Measurement speed SLOW2 (internal integration time 13PLC) (2) At a temperature of 23 °C ±5 °C with humidity of 85% rh (3) 2 mA range (Measurement speed FAST only) |
| Resistance measurement capabilities | 50 Ω to 2 × 10 ^19 Ω Note: Resistance measurement accuracy is defined by the current range accuracy and voltage setting accuracy. |
| Setting voltage range (Accuracy) | 0.1 to 100.0 V, 100 mV resolution, Accuracy: ±0.1 % of setting ±0.05% f.s. 100.1 to 1000 V, 1 V resolution, Accuracy: ±0.1 % of setting ±0.05% f.s. |
| Current Limiter | 0.1 to 250.0 V: 5/ 10/ 50 mA, 251 to 1000 V: 5/ 10 mA, to 2000 V:1.8 mA |
| Measurement time setting | Delay: 0 to 9,999 ms |
| Functions | Comparator, averaging, self-calibration, jig Capacity open correction, cable length correction, surface resistivity, volume resistivity, voltage monitor, contact check |
| Program function | 10 types of discharge, charge, measure and measurement sequence discharge patterns can be programmed. |
| Display | LCD (8 lines of 30 characters), with backlight, High voltage warning indicator |
| Interfaces | USB, RS-232C, GP-IB, EXT I/O (NPN/PNP can be switched) |
| Power supply | 100 to 240V AC , 50/60 Hz, 45 VA |
| Dimensions and mass | 330 mm (12.99 in)W × 80 mm (3.15 in)H × 450 mm (17.72 in)D, 5.9 kg (208.1 oz) |
| Accessories | Power cord ×1, Instruction manual ×1, CD-R (Communications command instruction manual, USB driver) ×1, EXT I/O male connector ×1, Short plug ×1 |
