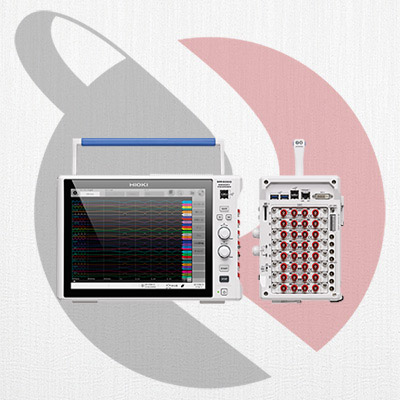

Hioki Memory HiCorder MR6000

Fitur Utama
• Pengujian terisolasi 200 MS / s berkecepatan tinggi (dengan Unit Analog Kecepatan Tinggi U8976Ax8)
• Secara simultan mengukur hingga 32 saluran analog (dengan Unit Analog 4ch U8975x8)
• Penghematan data waktu-nyata semua 32 ch pada 1 MS / s (dengan SSD Unit U8332)
• Layar sentuh yang sangat responsif
• Memory Concierge: Mudah mencari bentuk gelombang yang ingin Anda lihat dengan fungsi pencarian bentuk gelombang
• Hemat waktu lebih cepat (1/10 waktu yang dibutuhkan oleh model lama)
• Perhitungan filter digital waktu-nyata

Categories: Recorder/osiloskop, Hioki (Electrical Measurement) Tags: 1G-Word Memory (1ch), EV/HEV/PHEV development, inverters and motors, Max. 200M-Sampling/s (16ch), Max. 32ch Analog to 128ch Logic, Measure inverter and switching power supply signals with direct input, Measure large currents in the fields of solar power, Test ECUs

Description
Reviews (0)

MR6000 mengatasi semua hambatan untuk mencapai landasan baru dan memenuhi tantangan yang belum terlihat. Spesifikasi, pengoperasian, dan desain kelas dunia – perekam memori terbaru Hioki telah direkayasa ulang dari atas ke bawah, memberikan kinerja yang belum pernah terjadi sebelumnya yang akan mengubah cara Anda melihat rekaman gelombang.

	MR6000	MR6000-01
Additional function	N/A	Real-time waveform calculation, Digital Filter calculation
Number of input units	Max. 8 units
Number of channels	Max. 32 analog channels (when using the U8975), or 128 logic channels (when using the 8973)
Measurement ranges (20 div full-scale)	10 mV to 400 V f.s., 12 ranges (when using the U8976), Resolution : 1/1600 of range 4 V to 200 V f.s., 6 ranges (when using the U8975), Resolution : 1/32000 of range
Max. allowable input	400 V DC (when using the U8976), 200 V DC (when using the U8975)
Frequency characteristics	DC to 30 MHz (when using the U8976), DC to 2 MHz (when using the U8975)
Max. sampling rate	200 MS/s, all channnels simultaneously (when using the U8976) External sampling: 10 MS/s
Recording methods	Normal: Normal waveform recording Envelope: Record maximum and minimum values every fixed period
Storage memory capacity	1 G-words
Removable storage	SD memory card ×1, USB memory ×7, SSD/HDD (built in the main unit) ×1 FTP transmission (to LAN-connected computer) *Use only Storage Media sold by HIOKI.
Display	12.1 inch XGA-TFT color LCD (1024 × 768 dots)
External interfaces	LAN, USB, SD, SATA, Monitor output
Power supply	100 to 240 V AC (50/60 Hz) (300 VA max.)
Dimensions and mass	353 mm (13.9 in)W × 235 mm (9.25 in)H × 154.8 mm (6.09 in)D, 6.5 kg (229.3 oz) (main unit only)
Accessories	Power cord ×1, Quick start manual ×1, Precautions conserning use ×1, Application disk (CD-R) ×1, Instruction manual (CD-R, detail and calculation) ×1 , Blank panel (for blank slots only)
