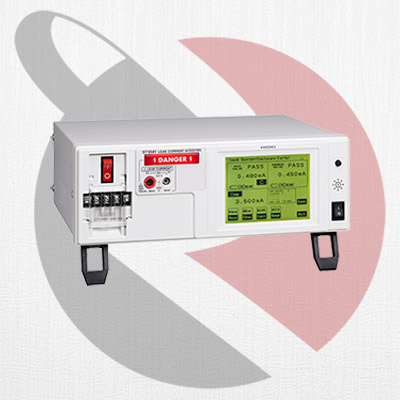

Hioki ST5541 Leak Current HiTester

Fitur Utama
• Kepatuhan dengan Peralatan Listrik dan Undang-Undang Keselamatan Bahan, standar JIS / IEC / UL
• Fungsi switching polaritas yang tidak terputus secara dramatis mengurangi waktu siklus
• Dukungan untuk arus pengenal hingga 20 A memberi instrumen lebih dari kemampuan yang memadai untuk menguji produk yang dirancang untuk memenuhi standar baru
• Panel sentuh menghadirkan operasi sederhana dan interaktif
• Fungsi komunikasi dan dukungan I / O eksternal memungkinkan pengujian otomatis pada jalur produksi

Kategori: Safety Tester, Hioki (Electrical Measurement) Tag: Built-in support for networks other than medical-use electrical devices, Complies with Electrical Appliances and Materials Safety Act, JIS/IEC/UL standards, Leakage current tester for non-medical use equipment, Supports equipment with up to 20A rated current, Testing of general-use electrical devices

Deskripsi
Ulasan (0)

Spesifikasi Hioki ST5541 Leak Current HiTester dan Harga

Spesifikasi Hioki ST5541 – Untuk memastikan keamanan penggunaan produk listrik, uji keamanan listrik seperti tahanan isolasi, tahan tegangan, tahanan tanah, dan arus bocor harus selalu dilakukan. Penguji Kebocoran Arus Hioki mematuhi undang-undang dan standar mengenai peralatan listrik medis serta peralatan listrik non-medis, dan dapat digunakan untuk mengukur kebocoran arus di semua jenis produk listrik dari komputer ke peralatan medis.

Measurement methods	Measurement of voltage drop across body simulated resistance points, Calculation and display of current values, True rms measurement, Measurement unit floats relative to instrument ground.
Measurement modes	Leak current measurement, voltage measurement, safety conductor current measurement
Standards compliance (NW: Body simulated resistance)	[NW-A] • Electrical Appliances and Materials Safety Act [NW-C] • Measurement of touch current and protective conductor current: IEC 60990:2016 • Electrical equipment for measurement, control, and laboratory use: IEC 61010-1:2010+ A1:2016 • Information technology equipment: IEC60950-1:2005+ A1:2009+ A2:2013 • Audio, video and similar electronic apparatus: IEC 60065:2014 • Personnel Protection Systems for EV: UL 2231-1:2012 (Amended 2016), UL-2231-2:2012 (Amended 2016) [NW-D] • For UL: UL 1492:1996 (Amended 2013) [NW-G] • Electrical equipment for measurement, control, and laboratory use; current measurement circuits in damp conditions: IEC 61010-1:2010+ A1:2016
Leak current measurement	Ground leak current, 3 types of contact current, free current measurement, 3 types of enclosure leak current
Measurement current	DC, AC (true rms, 15 Hz to 1 MHz), AC+DC (true rms, 15 Hz to 1 MHz), AC peak (15 Hz to 1 MHz)
Measurement ranges	DC / AC / AC+DC mode: 50.00 mA/ 5.000 mA/ 500.0 μA/ 50.00 μA AC peak mode: 75.0 mA/ 10.00 mA/ 1.000 mA/ 500.0 μA
Measurement accuracy (current measurement)	DC measurement: ±2.0% rdg. ±6 dgt. (typ.) AC / AC+DC measurement: ±2.0% rdg. ±6 dgt. (15 Hz to 100 kHz, typ.) AC peak measurement: ±2.0% rdg. ±6 dgt. (15 Hz to 10 kHz, typ.)
Interfaces	External I/O, USB 1.1 (communications), RS-232C
Functionality	Automatic test, data storage for 100 target devices, clock, data backup, printed output (optional), etc.
Power supply	100/120/220/240 V AC (specify at time of order), 50/60 Hz, 30 VA rated power
Target device power supply input	100 to 250 V AC, 50/60 Hz, Rated current input from terminal block: 20 A
Target device power supply output	Output from terminal block: 20 A, Output from outlet: 15 A
Dimensions and mass	320 mm (12.60 in) W × 110 mm (4.33 in) H × 253 mm (9.96 in) D, 4.5 kg (158.7 oz)
Accessories	Test lead L2200 (Red ×1, Black ×1) ×1 set, Enclosure probe 9195 ×1, Power cord ×3, Spare fuse for measurement line ×1, Instruction manual ×1, User guide ×1, CD-ROM ×1

■ ST5540, ST5541 List of functions (Network)

Item	ST5540	ST5541
Network A (Electrical Appliances and Materials Safety Act)	○	○
Network B (Medical-use electrical devices)	○	–
Network C (IEC 60990)	○	○
Network D (UL)	○	○
Network E (General-purpose 1)	○	○
Network F (General-purpose 2)	○	○
Network G (IEC 61010-1)	○	○

■ List of functions (Major functions)

Item	ST5540	ST5541
Power on polarity switching function	○	○
Rated current 20 A	○	○
Function for checking for blown fuses	○	○
Frequency band switching	○	–
110% voltage output terminal (T3 terminal)	○	–
S10, S12, S13, E terminal	○	–

■ List of functions (Testing leakage current mode)

Item	ST5540	ST5541
Earth leakage current	○	○
Touch current	○	○
Patient auxiliary current	○	–
Patient leakage current	○	–
Total patient leakage current	○	–
Free current	○	○
Enclosure – Earth leakage current	○	○
Enclosure – Enclosure leakage current	○	○
Enclosure – Line leakage current	○	○
Patient leakage current I	○	–
Patient leakage current II	○	–
Patient leakage current III	○	–

ST5541 menyediakan dukungan untuk jaringan yang sesuai standar (tidak termasuk perangkat listrik yang dapat digunakan secara medis).

Harga dan Spesifikasi Hioki ST5541 lanjutan

PT. Radius Allkindo Electric Merupakan DISTRIBUTOR RESMI HIOKI (Authorized Distributor) yang berlokasi Jakarta dan Surabaya, sehingga customer tidak perlu khawatir untuk kualitas produk dan keaslian produk Hioki. Untuk Harga dan Spesifikasi Hioki ST5541 Leak Current HiTester lebih lanjut bisa chat WA langsung di pojok bawah (0821-2198-5207), atau menghubungi ke No. Telpon 021-21287455 maupun email ke: cs@radius.co.id.
