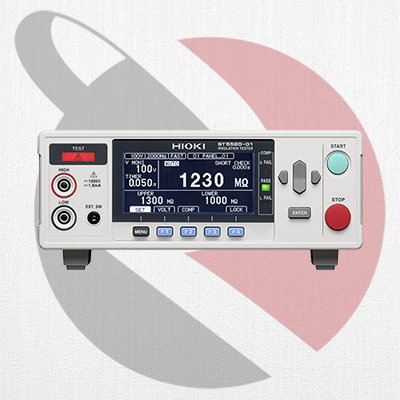

Hioki ST5520 Insulation Tester (Spesifikasi)

Fitur Utama
• Nilai cepat dalam 50 ms
• Pelepasan tegangan sisa secara cepat
• Tegangan uji yang dapat dikonfigurasi secara bebas (diatur dari 25 V hingga 1000 V, resolusi 1 V)
• Fungsi pemeriksaan kontak (mencegah kesalahan karena kontak yang buruk)
• Fungsi pemeriksaan hubung singkat (menghentikan potensi cacat mencapai pasar)
• Ideal untuk lini produksi baterai

Kategori: Safety Tester, Hioki (Electrical Measurement) Tag: 25 to 1000V test voltage, Fastest insulation testers in industry, Rapid 50ms testing speed, Rapid test time is ideal for battery production lines, Resistance up to 9990MΩ

Deskripsi
Ulasan (0)

Hioki ST5520 Insulation Tester – Penguji keamanan listrik Hioki dirancang untuk ketahanan insulasi dan tegangan tahan terhadap pengujian perangkat dan komponen listrik sesuai dengan berbagai standar keselamatan. ST5520 adalah penguji isolasi tercepat di industri, memberikan penilaian lulus / gagal secepat 50 ms. Tegangan uji 25 hingga 1000 V dengan resolusi 1 V.

Spesifikasi Hioki ST5520 Insulation Tester

Measurement items	Insulation resistance (Applied DC voltage method)
Testing voltage	(Measurement range: AUTO/MANUAL setting is possible) 25 V ≤ V < 100 V (2.000/20.00/200.0 MΩ), 100 V ≤ V < 500 V (2.000/20.00/200.0/2000 MΩ), 500 V ≤ V ≤ 1000 V (2.000/20.00/200.0/4000 MΩ)
Basic accuracy	±2 % rdg. ±5 dgt. 25 V ≤ V < 100 V [0 to 20 MΩ] 100 V ≤ V < 500 V [0 to 20 MΩ] 500 V ≤ V ≤ 1000 V [0 to 20 MΩ]
Measurement speed	Fast: 30 ms/time, Slow: 500 ms/time (selectable)
Display	LCD (service life: 100,000 hours), 4-level backlight
Internal memory	Saved items: rated measurement voltage, comparator upper limit /lower limit values, test mode, beep sound to distinguish the result, test time, response time, resistance range, measurement speed Memory capacity: up to 10 items (can be saved/loaded)
Comparator setting	UPPER_FAIL: Measured value ≥ upper limit value PASS: Upper limit value > measured value > lower limit value LOWER_FAIL: Measured value ≤ lower limit value
Judgement process	Beep sound, PASS / U.FAIL/L. FAIL: light up on LED display, When UL_FAIL, U.FAIL / L.FAIL light up simultaneously, EXT.I/O output, judgement result can be obtained via RS-232C
Test duration	Definition of test duration: Test duration = Response time + Measurement time Function: Set the time from voltage application until pass/fail assessment Configuration range: 0.045 s to 999.999 s (0.001 s resolution)
Response time timer	After the start of the test, comparator judgment operation can be prohibited until a set interval from 0.005 sec. to 999.999 sec. (at 0.001 sec. resolution) has passed.
Analog output	DC +4 V f.s.
Interface	RS-232C (standard), External I/O (External control input, Judgment result) BCD output (ST5520-01 only)
Power supply	100 to 240 V AC, 50/60 Hz, 25 VA max.
Dimensions and mass	215 mm (8.46 in)W × 80 mm (3.15 in)H × 166 mm (6.54 in)D, 1.1 kg (38.8 oz)
Accessories	Instruction Manual ×1, Power cord ×1, EXT. I/O Connector ×1, Connector Cover ×1

Spesifikasi dan Harga Hioki ST5520 Insulation Tester

PT. Radius Allkindo Electric Merupakan DISTRIBUTOR RESMI HIOKI (Authorized Distributor) yang berlokasi Jakarta dan Surabaya, sehingga customer tidak perlu khawatir untuk kualitas produk dan keaslian produk Hioki. Untuk Spesifikasi dan Harga Hioki ST5520 Insulation Tester lebih lanjut bisa chat WA langsung di pojok bawah (0821-2198-5207), atau menghubungi ke No. Telpon 021-21287455 maupun email ke: cs@radius.co.id.
