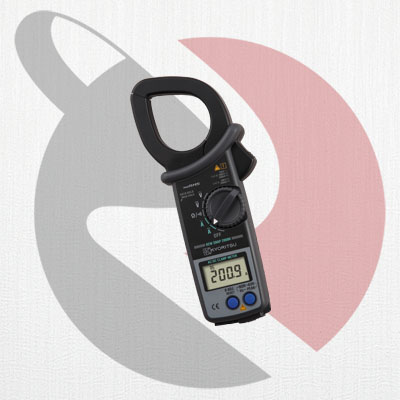

Kyoritsu AC/DC Clamp Meters 2009R

Name: Kyoritsu AC/DC Clamp Meters 2009R | PT. Radius Allkindo Electric
SKU: KYORITSU-2009R

Fitur Utama

• CAT IV Clamp Meter dapat mengukur Tegangan dan Arus di sirkuit daya sangat rendah dan tinggi.
• Pembacaan True-RMS Akurat untuk arus atau tegangan AC dengan bentuk gelombang terdistorsi.
• Dapat mengukur arus AC dan DC hingga 2000A.
• Terminal keluaran untuk koneksi ke perekam.

SKU: KYORITSU-2009R Kategori: Clamp Meter, Kyoritsu

Deskripsi
Ulasan (0)

AC A	400.0/2000A ±1.3%rdg±3dgt (0 – 400.0A, 150 – 1700A) (45 – 66Hz) ±2.0%rdg±5dgt (0 – 400.0A, 150 – 1700A) (20Hz – 1kHz) ±2.3%rdg±3dgt (1701 – 2000A) (45 – 66Hz)
DC A	400.0/2000A±1.3%rdg±2dgt
AC V	40.00/400.0/750V ±1.0%rdg±3dgt (45 – 66Hz) ±1.5%rdg±5dgt (20Hz – 1kHz)
DC V	40.00/400.0/1000V±1.0%rdg±2dgt
Ω	400.0/4000Ω ±1.5%rdg±2dgt (Electronic protection (no fuse) up to 600V)
Continuity buzzer	Buzzer sounds below 20Ω
Hz	10.0 – 4000Hz±1.5%rdg±5dgt (Input sensitivityCurrent: more than 40AVoltage: more than 10V)
Conductor size	Ø55mm max.
Output	Recorder : DC400mV against AC/DC400.0A DC200mV against AC/DC2000A
Applicable standards	IEC 61010-1 CAT IV 600V, CAT III 1000V Pollution degree 2 IEC 61010-031, IEC 61010-2-032, IEC 61326-1, IEC 61326-2-1
Power source	R6 (1.5V) × 2
Dimensions	250(L) × 105(W) × 49(D)mm
Weight	Approx. 540g (including batteries)
Included Accessories	7107A (Test leads), 9094 (Carrying case) R6 (AA) (1.5V) × 2, Instruction Manual
Optional Accessories	7256 (Output cord)
