| AC A | 40.00/400.0/1000A (Auto-ranging) ±1.5%rdg±5dgt (45 – 65Hz) ±2.0%rdg±5dgt (40 – 1kHz) |
|---|---|
| AC V | 4.000/40.00/400.0/600V (Auto-ranging) ±1.8%rdg±7dgt (45 – 65Hz) ±2.3%rdg±8dgt (65 – 500Hz) |
| DC V | 400.0mV/4.000/40.00/400.0/600V (Auto-ranging) ±1.0%rdg±3dgt (400mV range is excluded.) |
| Ω | 400.0Ω/4.000/40.00/400.0kΩ/4.000/40.00MΩ (Auto-ranging) ±2.0%rdg±4dgt (0 – 400kΩ) ±4.0%rdg±4dgt (4MΩ) ±8.0%rdg±4dgt (40MΩ) |
| Continuity buzzer | buzzer sounds below 50±30Ω |
| Conductor size | Ø33mm max. |
| Applicable standards | IEC 61010-1 CAT IV 300V / CAT III 600V Pollution degree 2 (AC A), CAT III 300V / CAT II 600V Pollution degree 2 (AC/DC V) IEC 61010-031, IEC 61010-2-032, IEC 61326 (EMC), EN 50581 (RoHS) |
| Power source | R03/LR03 (AAA) (1.5V) × 2 *continuous measuring time: approx. 120 hours (Auto power off: approx. 10 minutes) |
| Dimensions | 190(L) × 68(W) × 20(D)mm |
| Weight | Approx. 120g (including batteries) |
| Included Accessories | 7107A (Test leads), 9160 (Carrying case), R03 (AAA) × 2, Instruction Manual |

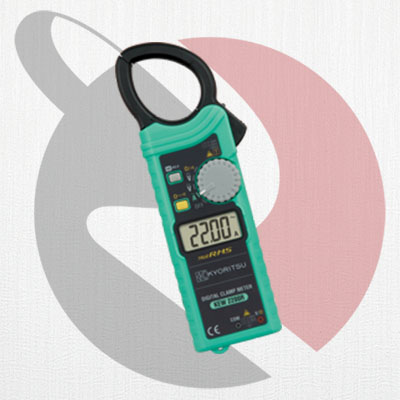

Kyoritsu AC Digital Clamp Meters KEW 2200R
• Desain praktis yang sangat ramping dan ringan
• Ø33mm mudah digunakan di tempat-tempat yang ketat
• 1000A AC Clamp Meter
• Fungsi DMM ACV, DCV, Ω, Continuity Buzzer
• Perlindungan elektronik Fuseless pada “Ω / Continuity Buzzer” hingga 600V
• Standar Keamanan IEC 61010-1, 61010-2-032 CAT IV 300V / CAT III 600V
