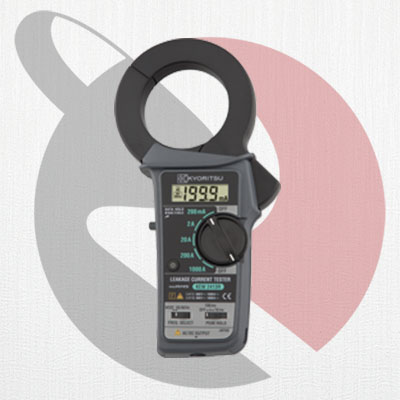

Kyoritsu Leakage Clamp Meters KEW 2413R

Name: Kyoritsu Leakage Clamp Meters KEW 2413R | PT. Radius Allkindo Electric
SKU: KYORITSU-2413R

Fitur Utama

• Rahang transformator besar dengan diameter 68mm memungkinkan untuk menjepit ketiga atau empat kabel (3 fase) bersama-sama untuk pengukuran arus bocor.
• True RMS memungkinkan pengukuran yang akurat untuk bentuk gelombang terdistorsi.
• Pengukuran dari mA hingga AC 1000A
• Sakelar filter frekuensi untuk menghilangkan efek harmonisa.
• terminal output analog 2 arah
• Resolusi 0,1mA

SKU: KYORITSU-2413R Kategori: Clamp Meter, Kyoritsu

Deskripsi
Ulasan (0)

AC A (50/60Hz)	200mA/2/20/200/1000A ±2.5%rdg±5dgt (200mA/2/20A) ±3.0%rdg±5dgt (200A, 0 – 500A) ±5.5%rdg (501 – 1000A)
AC A (WIDE)	200mA/2/20/200/1000A ±1.8%rdg±5dgt (50/60Hz) (200mA/2/20A) ±2.0%rdg±5dgt (50/60Hz) (200A, 0 – 500A) ±5.0%rdg (50/60Hz) (501 – 1000A)
Crest factor	3.0 or less
Conductor size	Ø68mm max.
Frequency response	40Hz – 1kHz
Output	Waveform : AC200mV against the maximum value of each range (1000A range is 100mV) Recorder : DC200mV against the maximum value of each range (1000A range is 100mV)
Applicable standards	IEC 61010-1 CAT III 300V Pollution degree 2 IEC 61010-2-032
Power source	6F22 (9V) × 1 *Continuous measuring time: Approx. 60 hours
Dimensions	250(L) × 130(W) × 50(D)mm
Weight	Approx. 570g (including battery)
Included Accessories	9094 (Carrying Case) 6F22 × 1 Instruction Manual
Optional Accessories	7073 (2WAY Output Cord)
